CHT Series


Main Features

  • 15 needles and up to 8 heads, suitable for flat bed embroidery, cap/hat embroidery, finished garments embroidery and more
  • Embroidery Area: 40cm x 45cm (optional 50cm x 45cm)
  • Maximum speed 1000 SPM
  • 270° Cap Embroidery System
  • User friendly control panel makes it easy to operate and increase efficiency

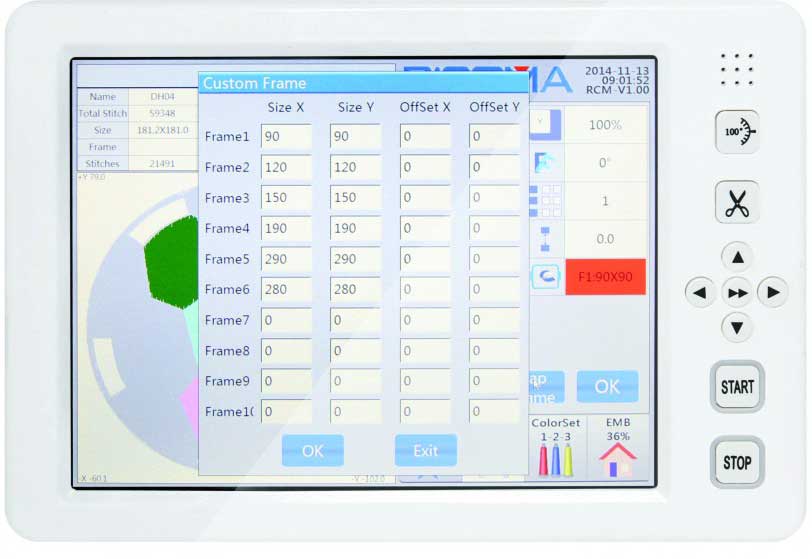

  • Preset Hoops
  • Onboard lettering
  • USB Port
  • Easy Color Selection
  • Memory Capacity: 50.000.000 Stiches
  • Multiple languages available
  • 110V/60Hz or 220V/50Hz available

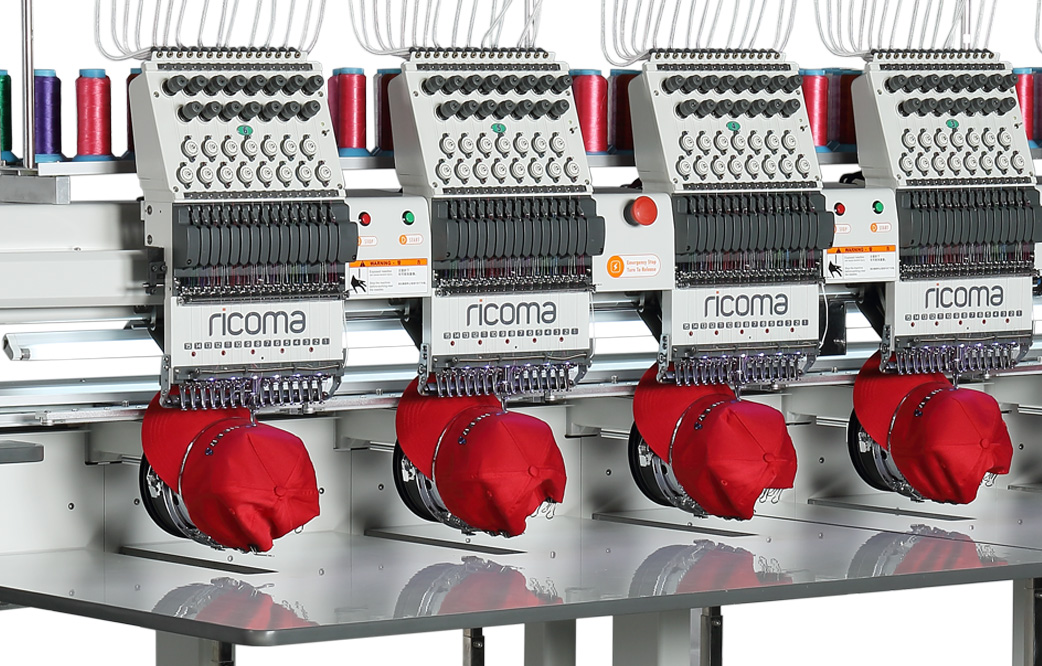

Kappen Stickerei

Kappen Stickerei

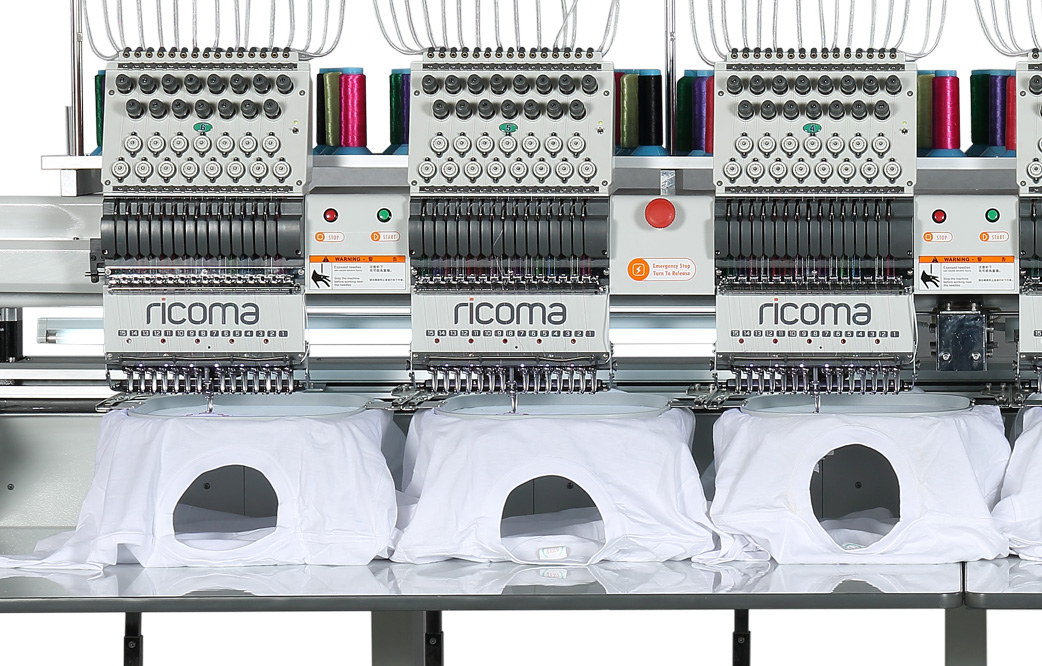

Röhren Stickerei

Röhren Stickerei

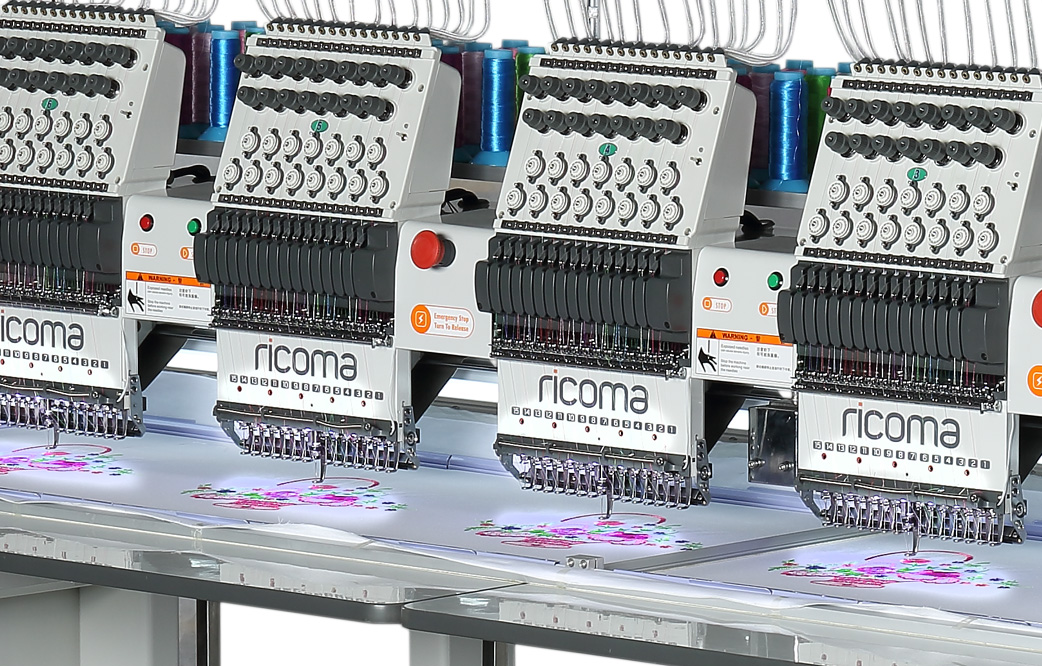

Flachbett Stickerei

Flachbett Stickerei

Embroidery Example

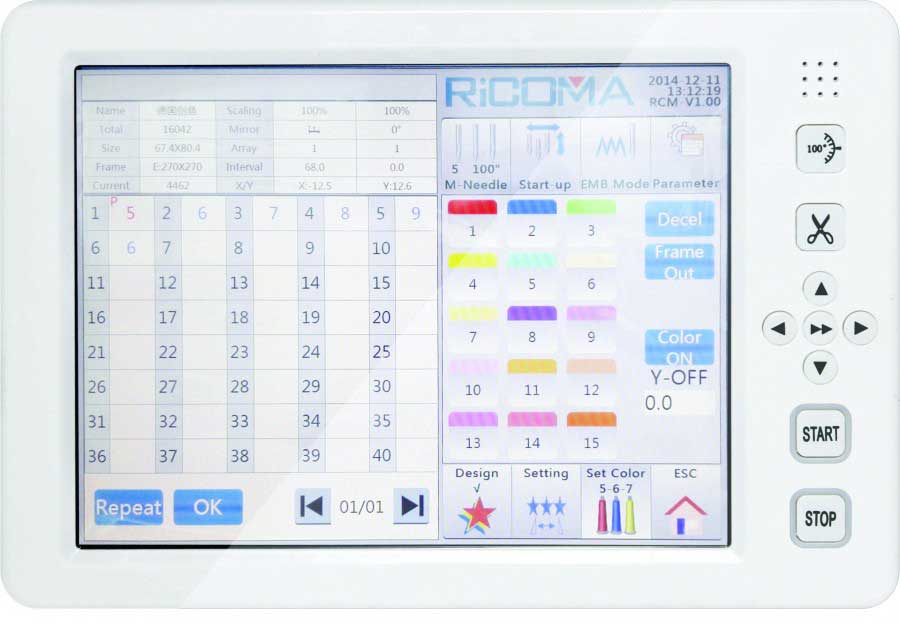

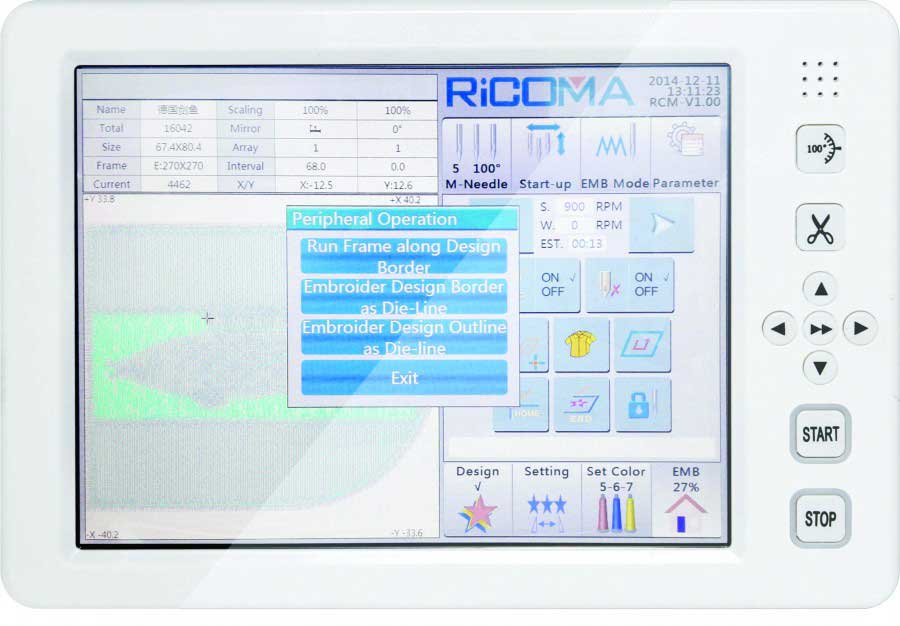

10.4" HD Touch Screen Control Panel TC-7S


Models

CHT-1501

Needles
15

Heads
1

Embroidery Area
40cm x 45cm (optional 45cm x 50cm)

CHT-1502

Needles
15

Heads
2

Embroidery Area
40cm x 45cm (optional 45cm x 50cm)

CHT-1504

Needles
15

Heads
4

Embroidery Area
40cm x 45cm (optional 45cm x 50cm)

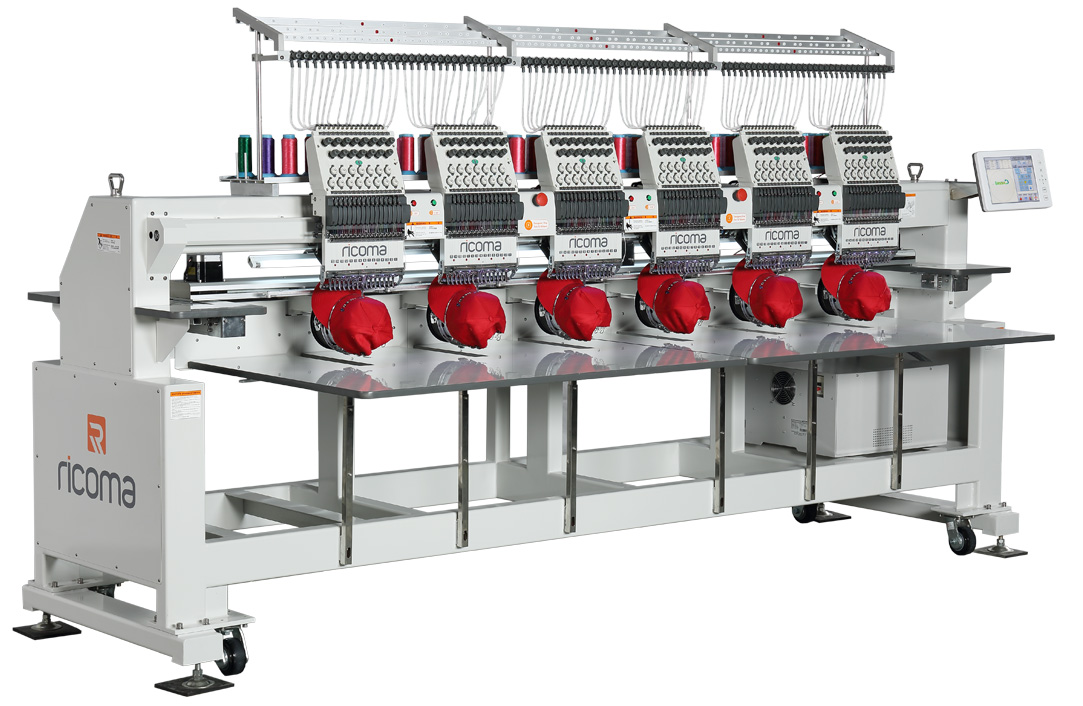

CHT-1506

Needles
15

Heads
6

Embroidery Area
40cm x 45cm (optional 45cm x 50cm)

CHT-1508

Needles
15

Heads
8

Embroidery Area
40cm x 45cm (optional 45cm x 50cm)

Specifications

Speed: Max. 1.000 SPM

Motor Main: Servo Motor

Motor X-Y: Stepping Motor

Operation box: 10.4" True Color LCD Screen

Hook: Japanese Koban Hook

Memory Capacity: 50.000.000 Stiches

Memory Media: USB Memory Stick

Safety Device: Emergency Stop, Error Code Message

PDF Ricoma CHT Series 11,9 MB


Included Accessories

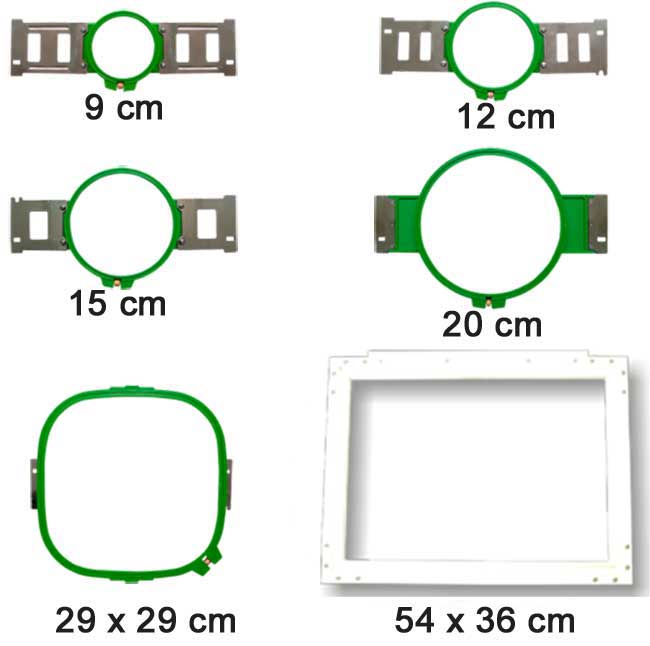

Frames

  • 2 x Round Hoop 9 cm per head
  • 2 x Round Hoop 12 cm per head
  • 2 x Round Hoop 15 cm per head
  • 2 x Round Hoop 20 cm per head
  • 2 x Square Hoop 29 x 29 cm per head
  • 1 x Square Hoop 54 x 36 cm

Complete Cap Embroidery System

Cap Frame

2 x Cap Frame
per head

Cap Hoop Station

1 x Cap Hoop Station
per machine

Cap Drive

1 x Cap Drive
per head


Laser Pointer

Laser Pointer

Included laser trace device
