SWD Series


Main Features

  • Suitable for embroidery on flats, caps, finished garments and more!
  • Perfect for embroidery on large items
  • High definition true color 8-inch LCD touch screen
  • Maximum embroidery area: 800 mm x 500 mm, or 32”x 20”
  • Net weight: 185 kgs (408 lbs)
  • Gross weight: 230 kgs (507 lbs)
  • Heavy duty steel stand with wheels to ensure both stability and mobility
  • Maximum speed: 1,000 stitches per minute
  • Memory capacity: 20 million stitches or 200 designs
  • Machine reads multiple design formats, such as DST, DSB and more
  • 270° wide angle cap system
  • Environment friendly packaging
  • Built-in levers for easy machine installment
  • USB input or direct transmission from PC via wireless LAN
  • Wi-Fi capable (Networkable with Access Point)
  • Servo motor 150W - lowest power consumption in the industry!
  • Built-in universal power supply, 110V/60Hz and 220V/50Hz self adaptable worldwide
  • DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
  • Emergency Stop Button
  • Automatic thread trimmer
  • Thread break detection
  • Easily apply appliqué, sequin, boring or cording
  • Two recessed USB ports to protect USB flash drive
  • Integrated laser tracing device
  • Multiple hoop sizes for a variety of embroidery needs
  • Automatic memory retention
Embroidery Example
Embroidery Example
Embroidery Example

Network Capability Ready

Using advanced network technology, users can link together as many Ricoma machines as desired to an extremely flexible production system. Embroider the same design on all of your machines, or embroider different designs on individual machines simultaneously.

Network ready

Touch Screen control Panel TC-8S

  • User-friendly interface
  • New ergonomic touch screen allows for easy and comfortable operation with right-hand thumb
  • Preset hoop parameters designed to avoid hitting hoops
  • Multi-angle, rotatable and adjustable control panel bracket allows for better visibility
  • Pre-sew design trace capable
  • Automatic color change
  • Optional camera positioning device
  • High Definition true color 8” LCD Touch Screen
  • Built-in factory mode, standardizing outgoing quality control process
  • Built-in fle folder management
  • Screenshot function
  • 3D design view for better visibility
  • Built in button form 172° degrees to 196° under manual color change mode, a great help for machine maintenance
  • Frame offset and frame outlining available for easy appliqué embroidery
  • Machine parameters can be exported and imported for easy maintenance
  • One step trace button directly on the main screen
  • External 100° button and trimming button
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more
  • Laser pointer is activated when tracing design
  • New mode for needle path calculation, optimizing embroidery quality

Models

SWD-1201TC-8S

Needles
12

Heads
1

Net Weight
185kg

Embroidery Area
80cm x 50cm

Size
103cm x 92cm x 160cm

SWD-1501TC-8S

Needles
15

Heads
1

Net Weight
185kg

Embroidery Area
80cm x 50cm

Size
103cm x 92cm x 160cm

SWD-1501TC-8S-EW4820

Needles
15

Heads
1

Net Weight
230kg

Embroidery Area
120cm x 50cm

Size
103cm x 92cm x 160cm

PDF Ricoma SWD Series 12,7 MB


Included Accessories

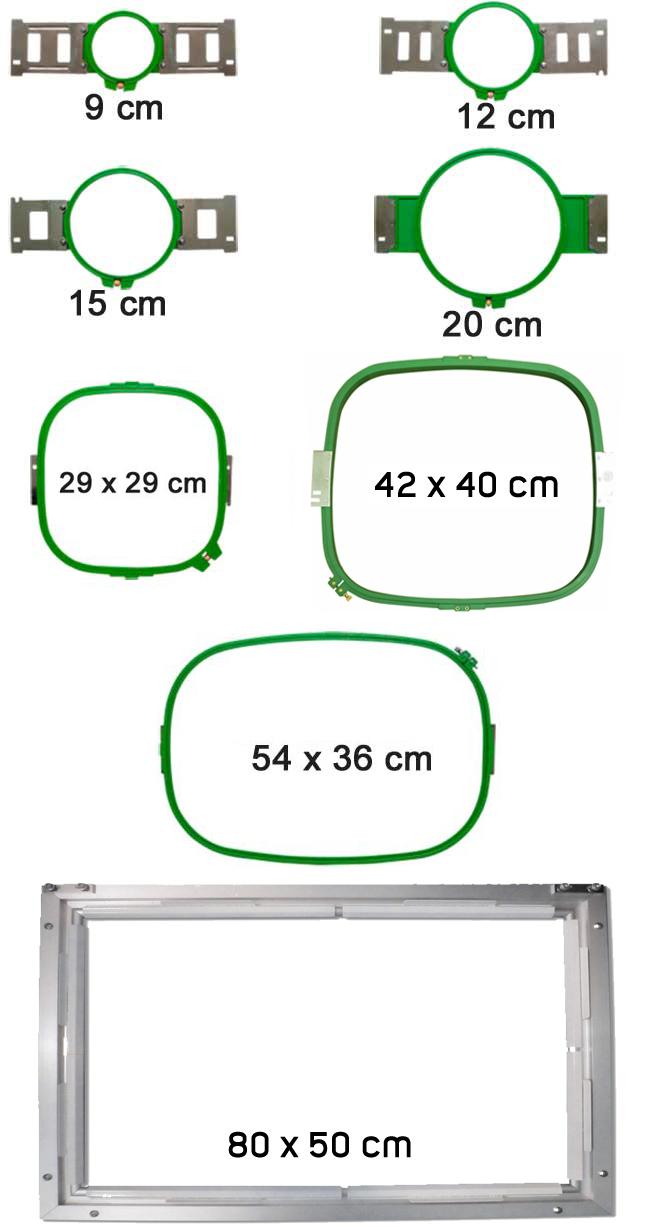

Frames

  • 2 x Round Hoop 9 cm
  • 2 x Round Hoop 12 cm
  • 2 x Round Hoop 15 cm
  • 2 x Round Hoop 20 cm
  • 2 x Square Hoop 29 x 29 cm
  • 1 x Sash Frame 42 x 40 cm
  • 1 x Sash Frame 54 x 36 cm
  • 1 x Aluminium border Frame 80 x 50 cm

Laser Pointer

Laser Pointer

Heavy duty steel stand with wheels

Heavy duty steel stand with wheels

Size: 110cm x 85cm x 78cm
Weight: 49kg


Embroidery Field Extension

Embroidery Field Extension

Stickfeld Erweiterung auf 120cm x 50cm.

The model SWD-1501TC-7S-EW4820 includes the embroidery area extension.
For the other SWD machines: the extension can be ordered as an option.
