MT Series


Main Features

  • Designed for embroidery on bulky and large items
  • 12 or 15 needles, one head or two head, suitable for flat bed embroidery, cap/hat embroidery, finished garments embroidery and more
  • Perfect for home and commercial embroidery
  • Newly developed small sewing arm guarantees better embroidery quality on caps and small items
  • Max. Embroidery Area: 50cm x 36cm
  • Automatic thread trimmer
  • Max. Speed 1000 SPM
  • 270° Cap Embroidery System
  • USB input or direct transmission from PC via LAN or optional via Wi-Fi
  • Networkable and Wi-Fi capable
  • Auto color change
  • Thread break detection
  • Pre-sew design trace capable
  • Automatic memory retention
  • Servo motor 150W - lowest power consumption in the industry!
  • Built-in universal power supply, 110V/60Hz and 220V/50Hz self adaptable worldwide
  • DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
  • Heavy duty steel stand with wheels to ensure both stability and mobility
  • Environment friendly packaging
  • Included laser trace device
  • Emergency Stop
Embroidery Example

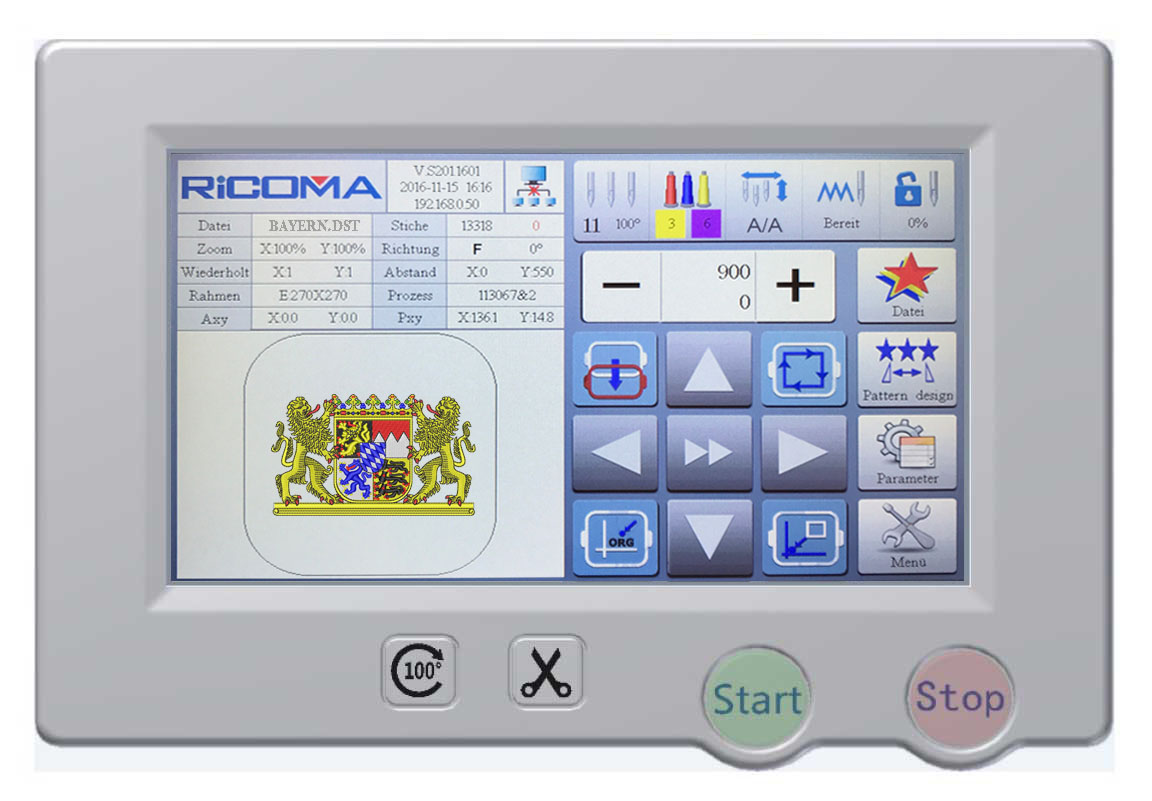

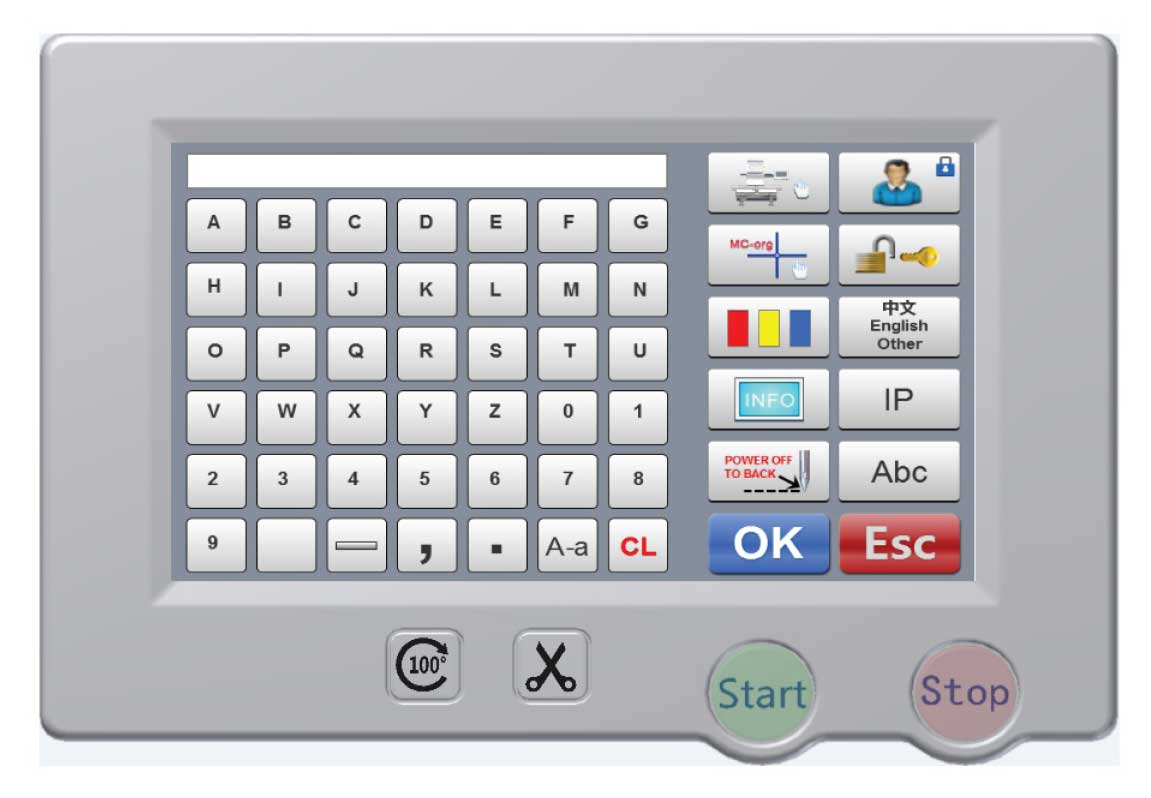

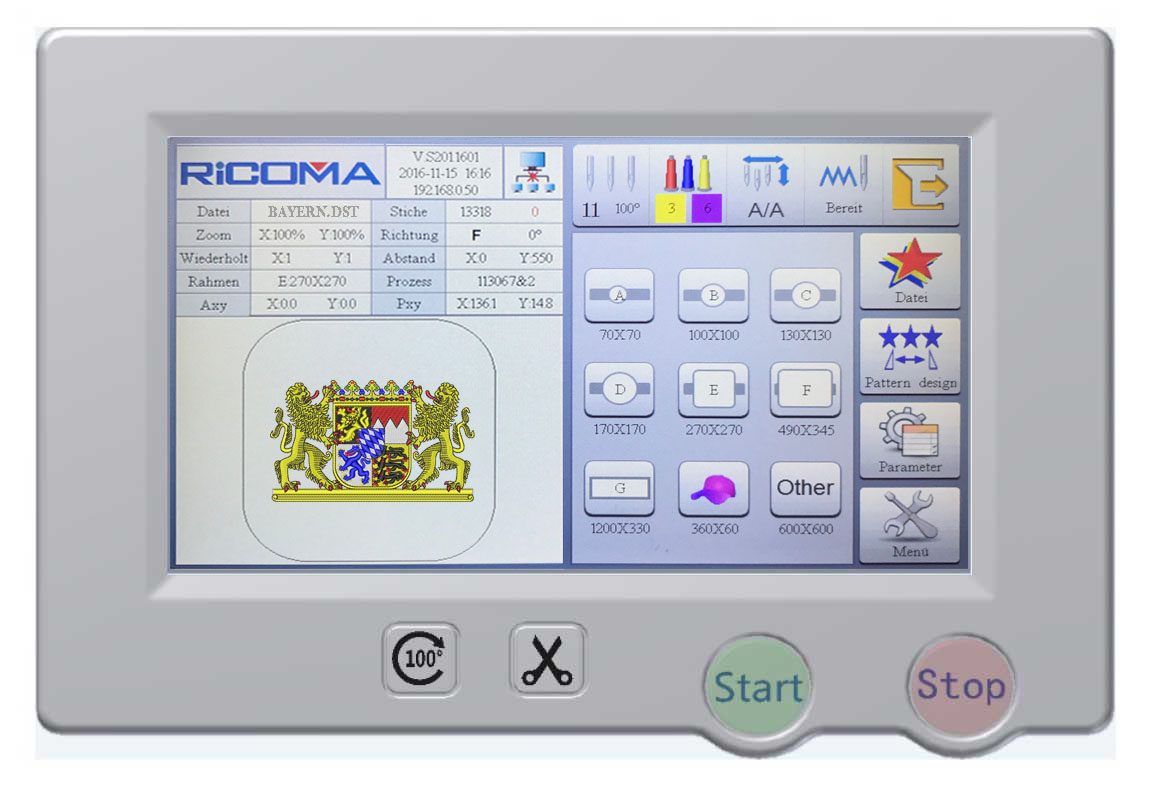

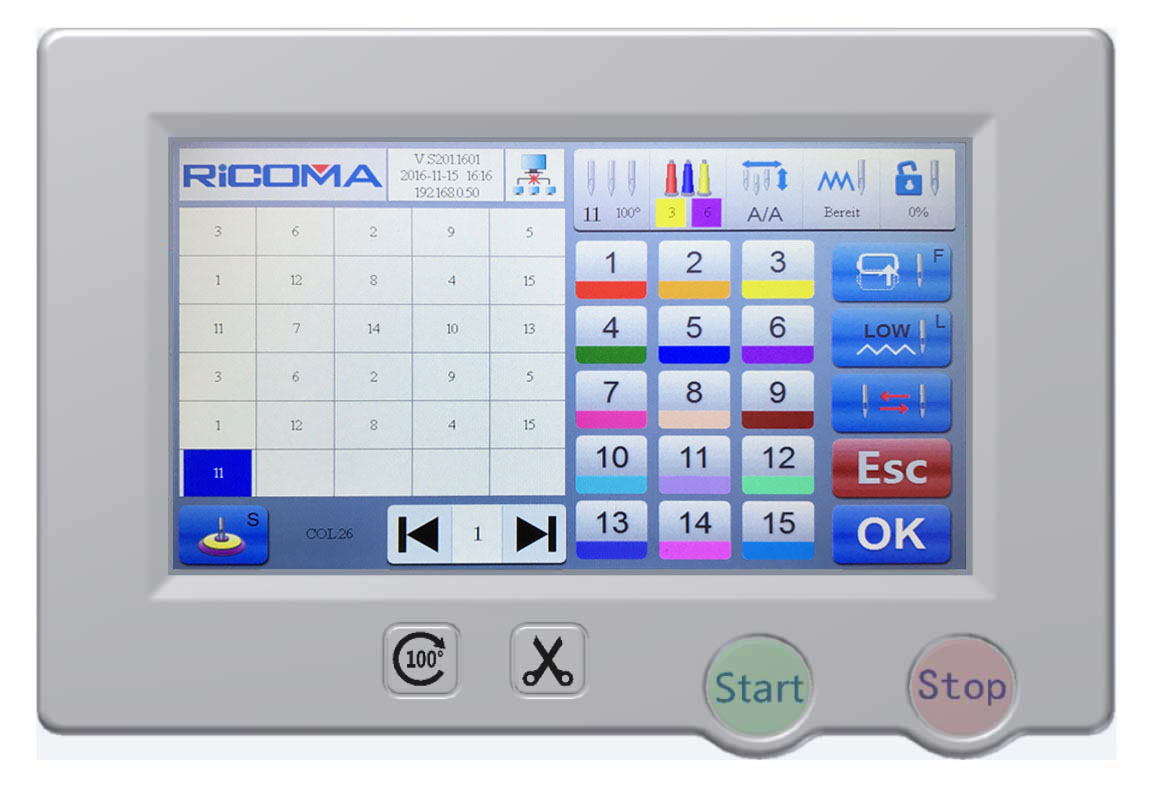

Touch Screen Control Panel TC-7S

  • Multi-languages available in English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more
  • Userfriendly operation interface with useful functions that make it easy to operate and increase efficiency
  • Machine reads multiple design formats, such as DST, DSB and more
  • Preset 8 sizes of frames to avoid hitting frame
  • When setting color change sequence, operator is able to add appliqué, sequin, boring or cording. There is no need to change it in the parameters page
  • Built in button form 172° degrees to 196° under manual color change mode, a great help for machine maintenance
  • Frame offset and frame outlining available for easy appliqué embroidery
  • High Definition true color 7” LCD Touch Screen
  • Multi-angle rotational and adjustable control panel bracket for a better view
  • Recessed USB port to protect USB flash drive
  • New ergonomic touch screen allows easy and comfortable operating by right hand thumb
  • Main operation area located on the right side of interface, convenient for right thumb operation
  • One step trace button directly on the main screen
  • External 100° button and trimming button

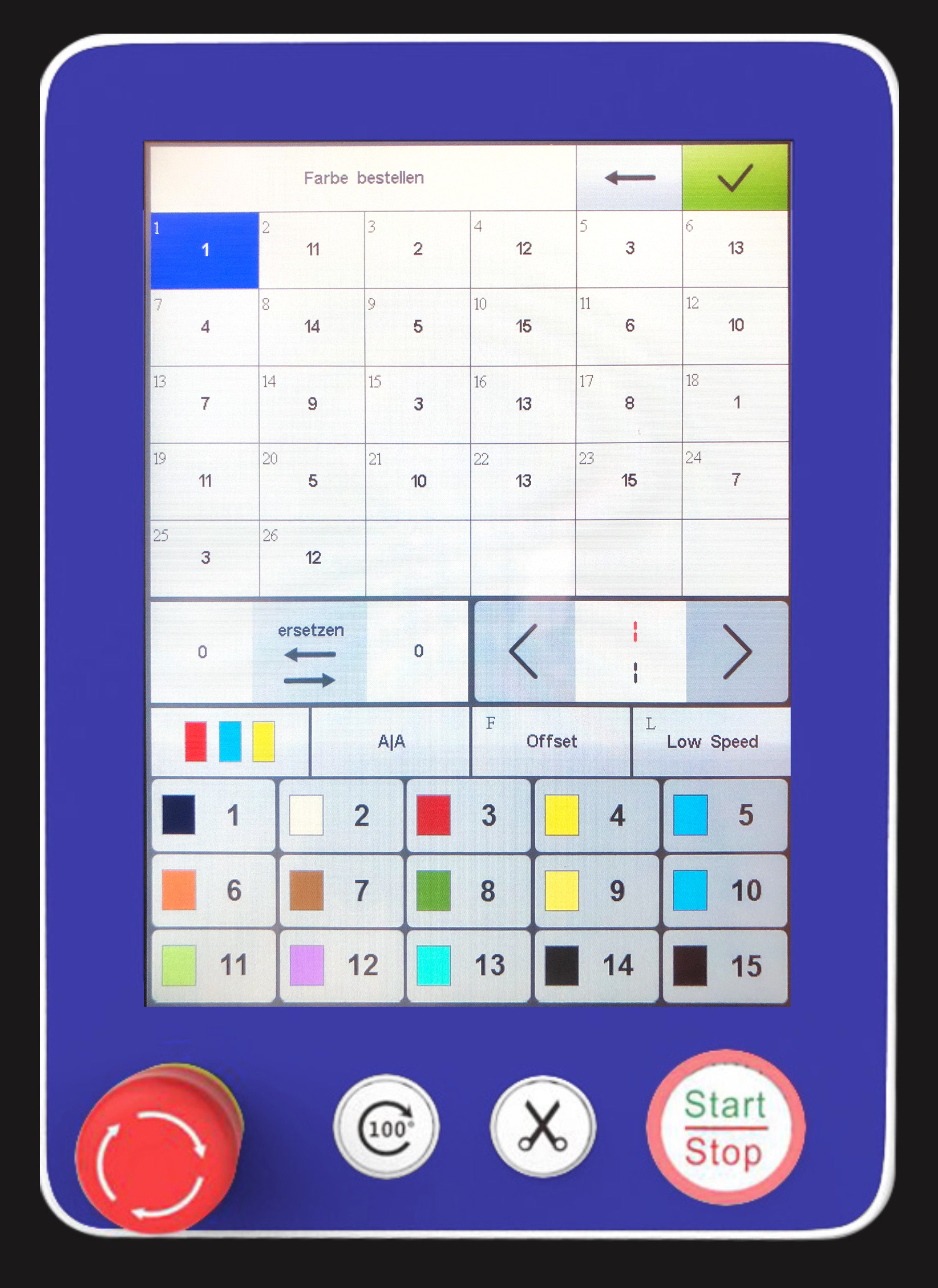

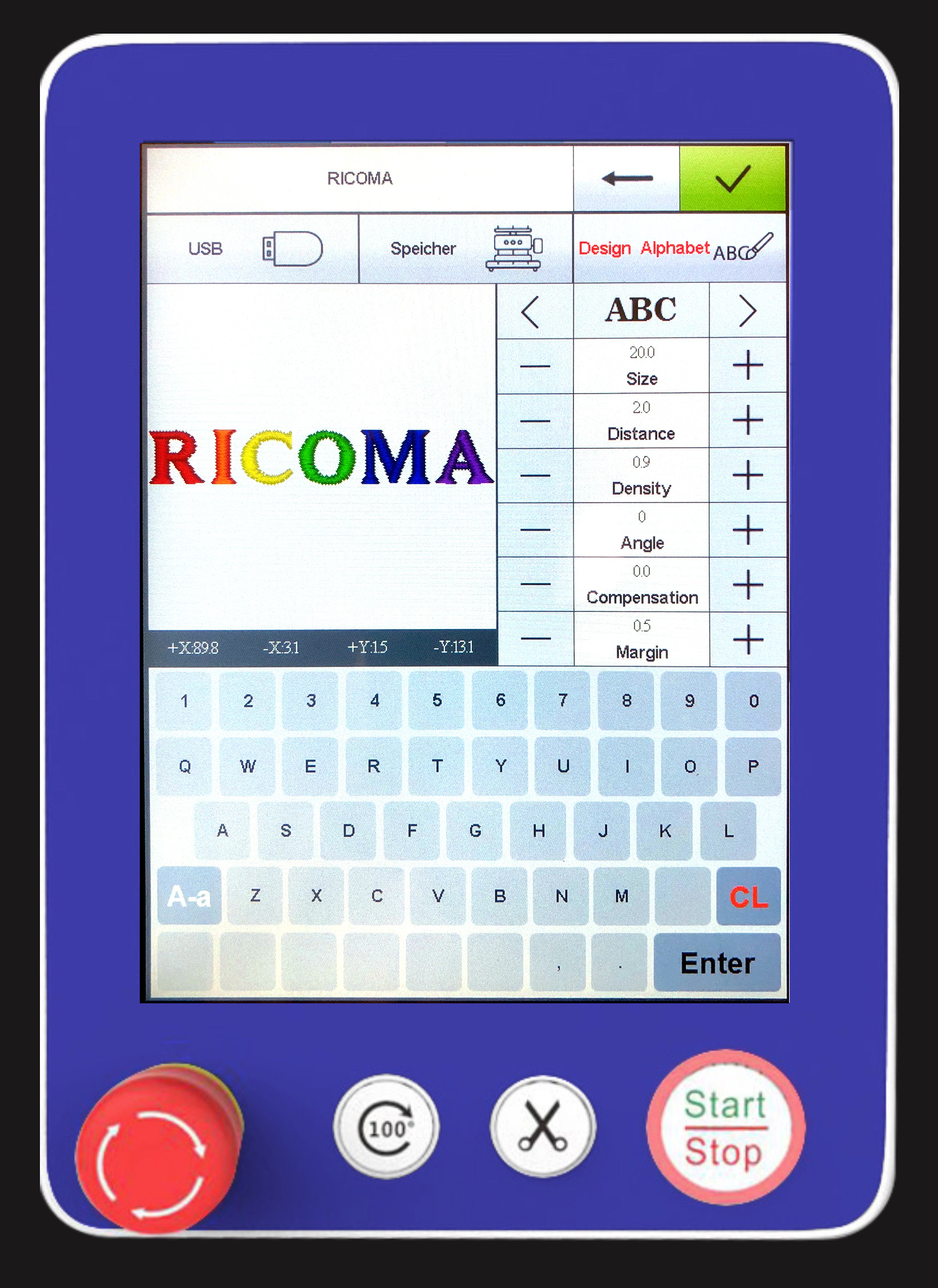

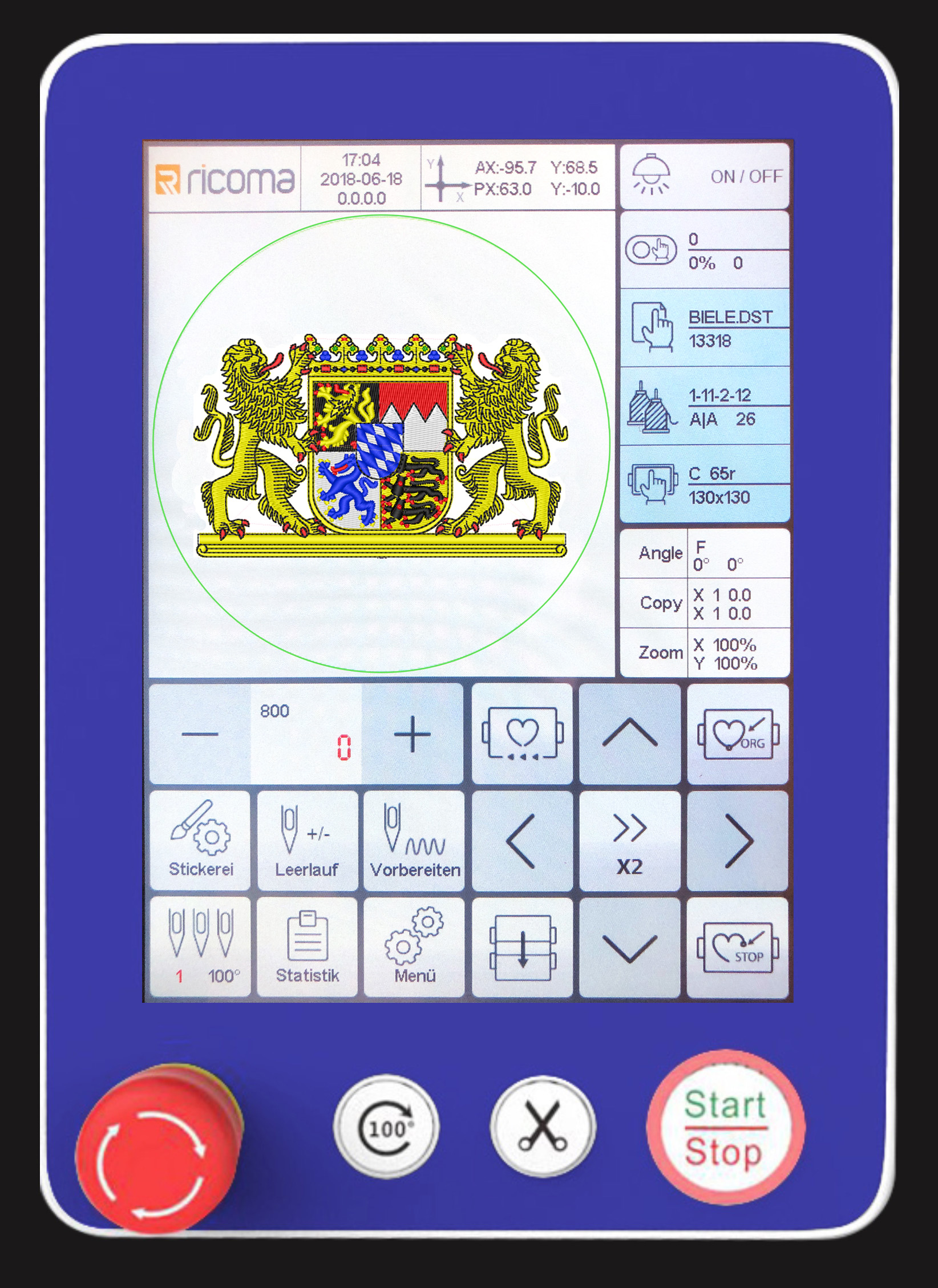

Touch Screen control Panel TC-8S

  • User-friendly interface
  • New ergonomic touch screen allows for easy and comfortable operation with right-hand thumb

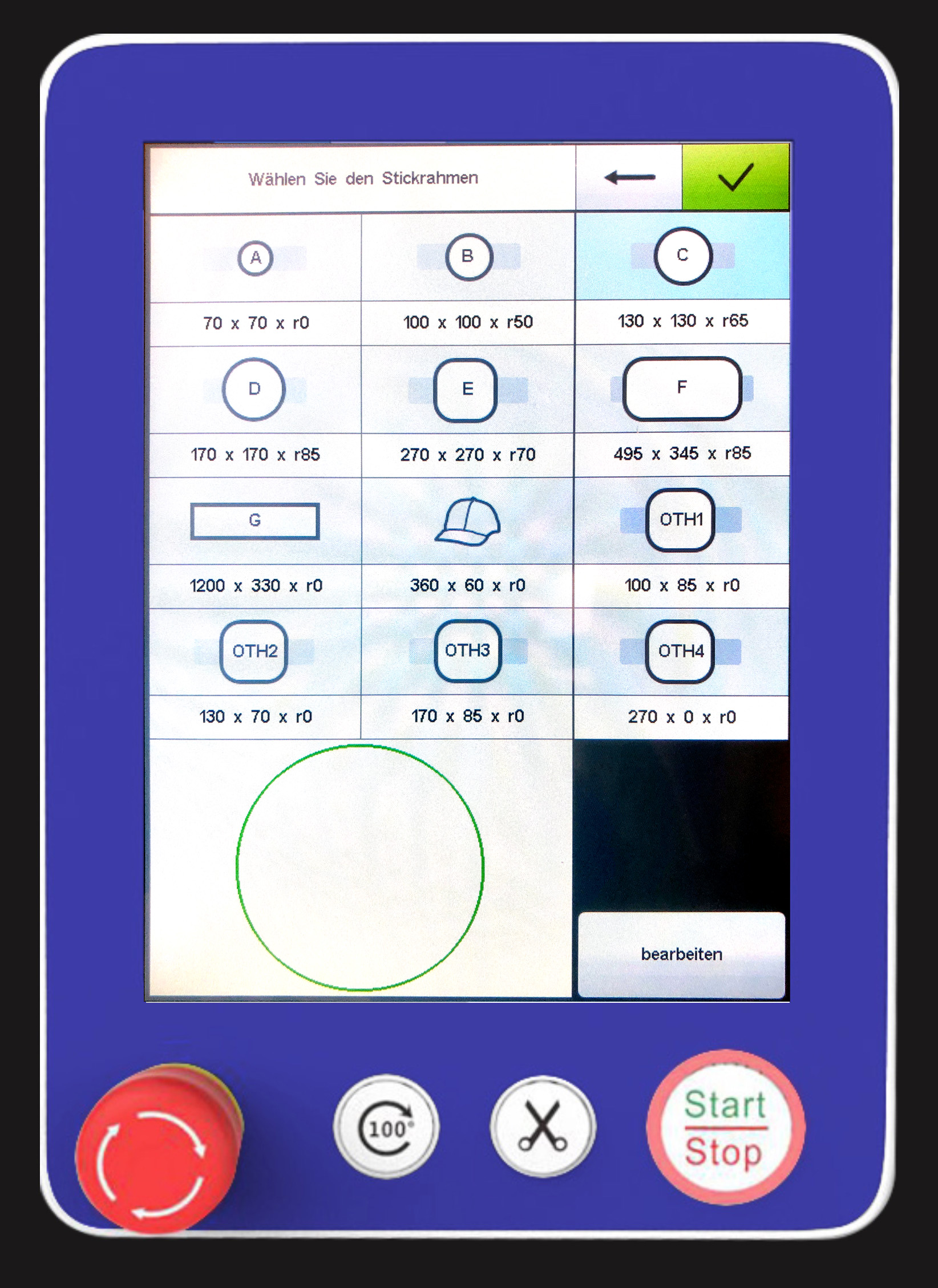

  • Preset hoop parameters designed to avoid hitting hoops
  • Multi-angle, rotatable and adjustable control panel bracket allows for better visibility
  • Pre-sew design trace capable
  • Automatic color change
  • Optional camera positioning device
  • High Definition true color 8” LCD Touch Screen
  • Built-in factory mode, standardizing outgoing quality control process
  • Built-in fle folder management
  • Screenshot function
  • 3D design view for better visibility
  • Built in button form 172° degrees to 196° under manual color change mode, a great help for machine maintenance
  • Frame offset and frame outlining available for easy appliqué embroidery
  • Machine parameters can be exported and imported for easy maintenance
  • One step trace button directly on the main screen
  • External 100° button and trimming button
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more
  • Laser pointer is activated when tracing design
  • New mode for needle path calculation, optimizing embroidery quality

Network Capability Ready

Using advanced network technology, users can link together as many Ricoma machines as desired to an extremely flexible production system. Embroider the same design on all of your machines, or embroider different designs on individual machines simultaneously.

Network ready

Models

MT-1201TC-7S (not on stock)

Needles
12

Heads
1

Net Weight
140kg

Embroidery Area
50cm x 36cm

Size
77cm x 83cm x 160cm

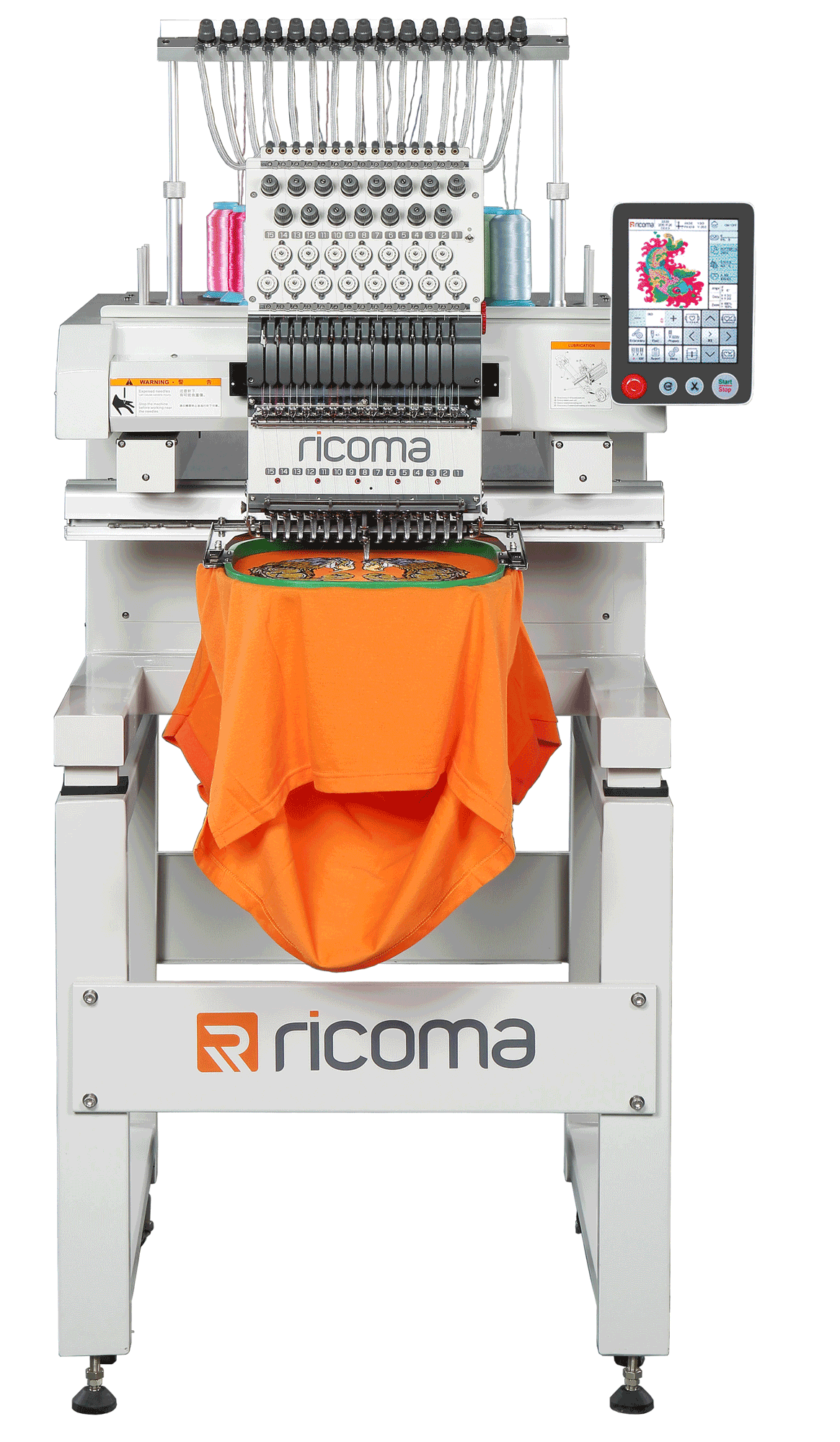

MT-1501TC-7S

Needles
15

Heads
1

Net Weight
145kg

Embroidery Area
50cm x 36m

Size
77cm x 83cm x 160cm

MT-1202TC-7S (not on stock)

Needles
12

Heads
2

Net Weight
185kg

Embroidery Area
50cm x 36m

Size
77cm x 143cm x 160cm

MT-1502TC-7S

Needles
15

Heads
2

Net Weight
190kg

Embroidery Area
50cm x 36m

Size
77cm x 143cm x 160cm

MT-1201TC-8S (not on stock)

Needles
12

Heads
1

Net Weight
140kg

Embroidery Area
50cm x 36cm

Size
77cm x 83cm x 160cm

MT-1501TC-8S

Needles
15

Heads
1

Net Weight
145kg

Embroidery Area
50cm x 36m

Size
77cm x 83cm x 160cm

MT-1202TC-8S (not on stock)

Needles
12

Heads
2

Net Weight
185kg

Embroidery Area
50cm x 36m

Size
77cm x 143cm x 160cm

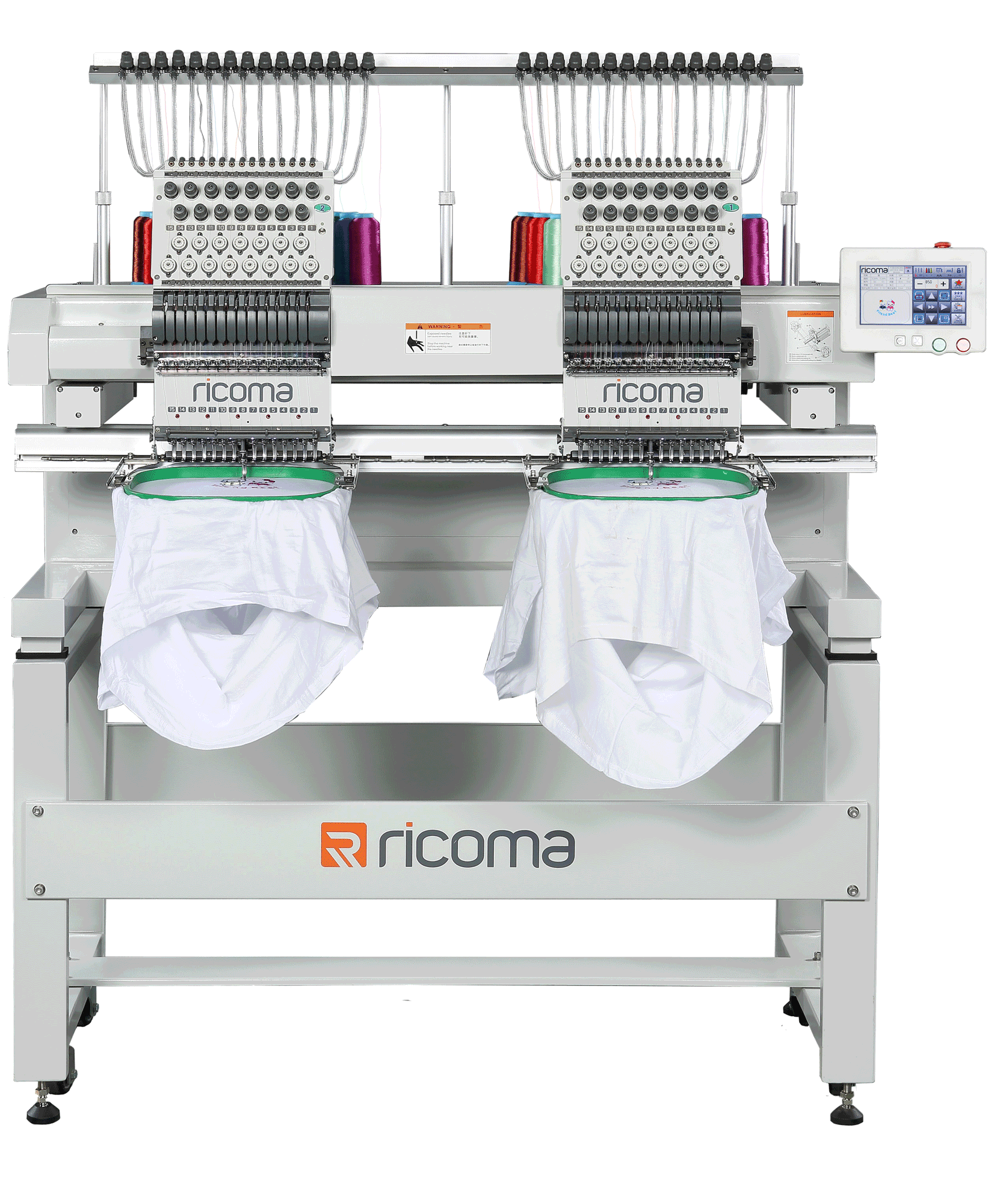

MT-1502TC-8S

Needles
15

Heads
2

Net Weight
190kg

Embroidery Area
50cm x 36m

Size
77cm x 143cm x 160cm

Specifications

Speed: Max. 1.000 SPM for single head and 1.000 SPM for two heads

Motor Main: Servo Motor

Motor X-Y: Stepping Motor

Operation box: Intuitive 7"/8" True Color LCD Screen

Hook: Japanese Koban Hook

Memory Capacity: 20.000.000 Stiches or 200 Designs

Memory Media: USB Memory Stick

Safety Device: Emergency Stop, Error Code Message

Cap Embroidery: 270° Cap Embroidery System

Power: AC110 - 240V, 50-60 Hz self-adaptable

PDF Ricoma MT-7S Series 19.2 MB

PDF Ricoma MT-8S Series 18.9 MB


Included Accessories

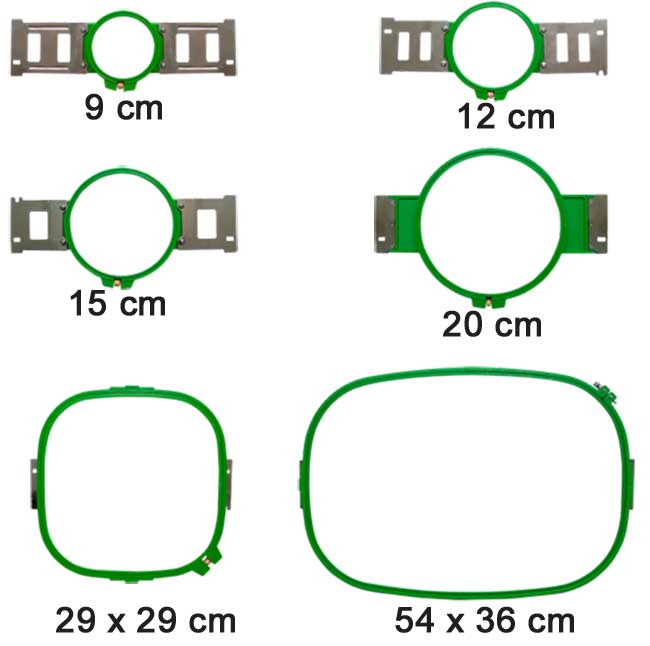

Frames

  • 2 x Round Hoop 9 cm
  • 2 x Round Hoop 12 cm
  • 2 x Round Hoop 15 cm
  • 2 x Round Hoop 20 cm
  • 2 x Square Hoop 29 x 29 cm
  • 1 x Sash Frame 54 x 36 cm

Complete Cap Embroidery System

Cap Frame

2 x Cap Frame

Cap Hoop Station

1 x Cap Hoop Station

Cap Drive

1 x Cap Drive


Laser Pointer

Laser Pointer

Included laser trace device
