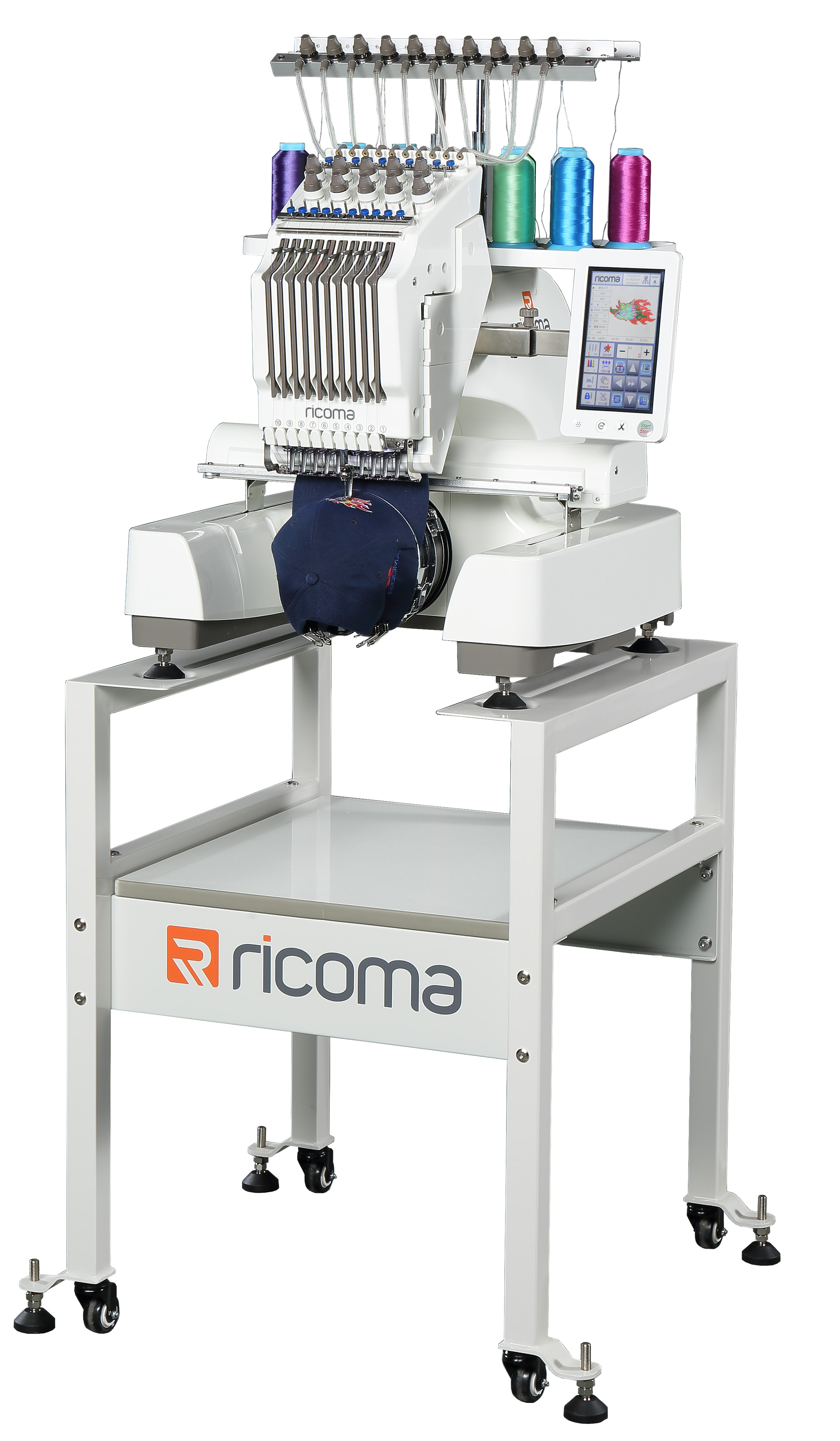

EM Series

Main Features

  • Single head machine with 10 needles to meet all of your embroidery needs
  • Sleek and stylish design with 7″ HD true color LCD touch screen
  • Maximum speed 1000 SPM
  • User friendly control panel makes it easy to operate and increase efficiency
  • Multiple languages available including English, Spanish, Portuguese, Chinese, Turkish, Dutch, French, German, Thai, Arabic, etc.

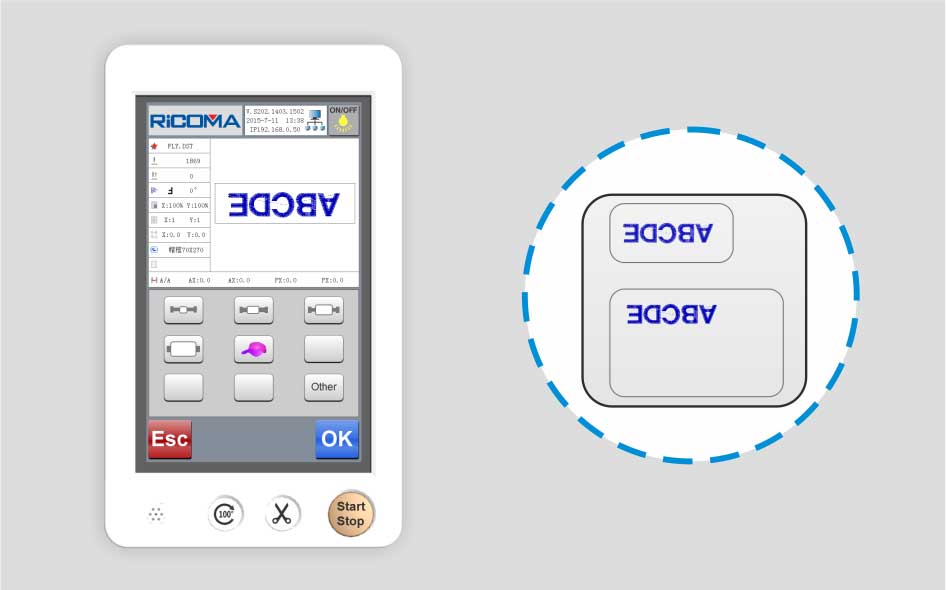

  • Preset Hoops

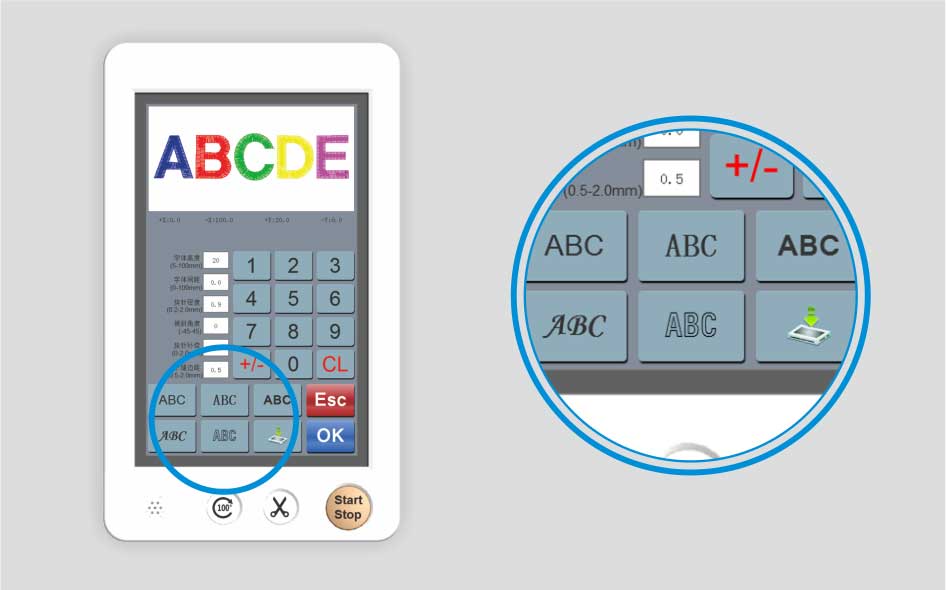

  • Onboard lettering
  • USB Port
  • Easy Color Selection
  • Memory Capacity: 20.000.000 Stiches
  • Low power consumption
  • Patented intelligent thread break detection system
  • Ethernet or wireless connectivity makes it easy for design management on PC
  • 110V/60Hz or 220V/50Hz available
  • Machine reads multiple design formats, such as DST, DSB and more
  • Servo motor enables machine to be more durable and reliable
Patented intelligent thread break detection system

Patented intelligent thread break detection system

Full-spectrum LED lightning with low energy consumtion

Full-spectrum LED lightning with low energy consumtion

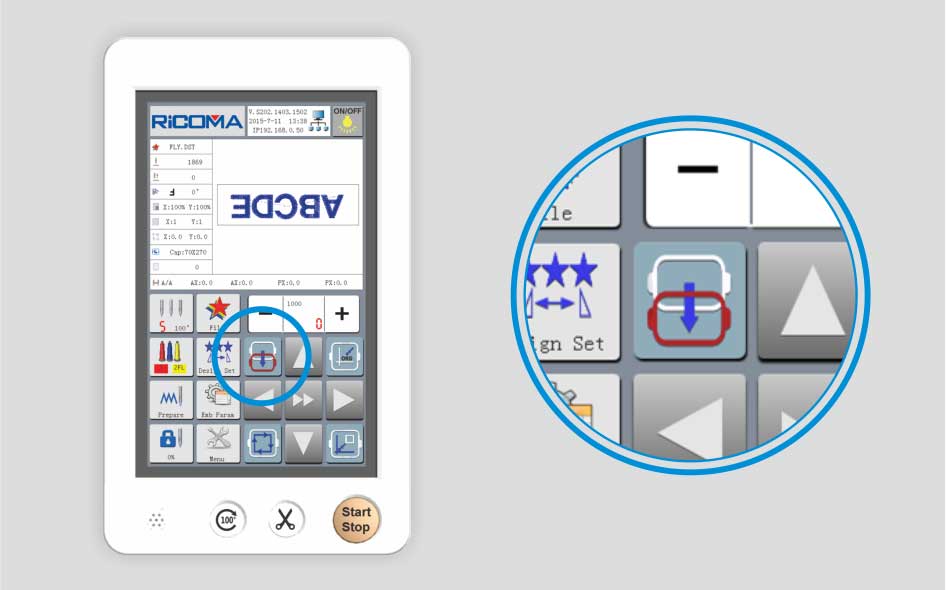

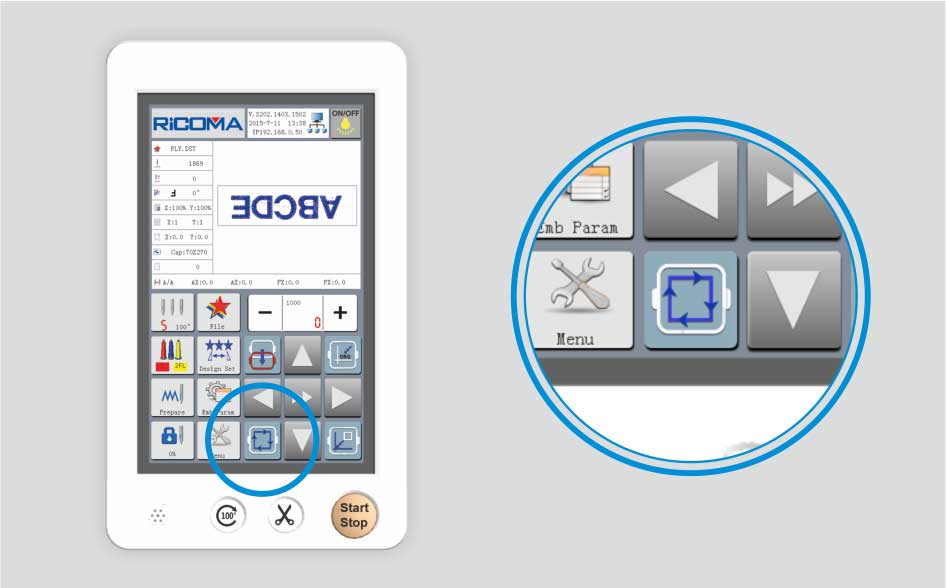

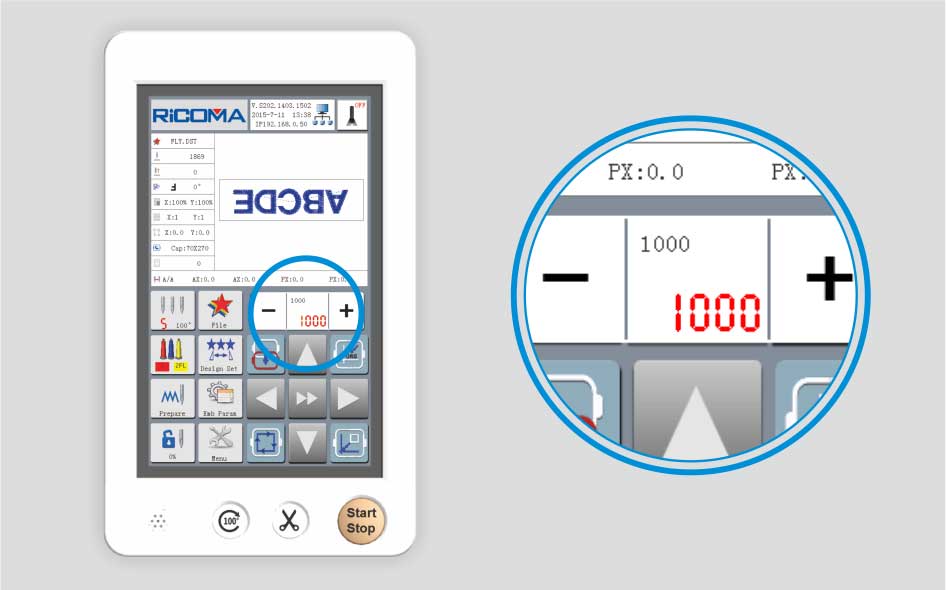

7" Touch Screen Control Panel

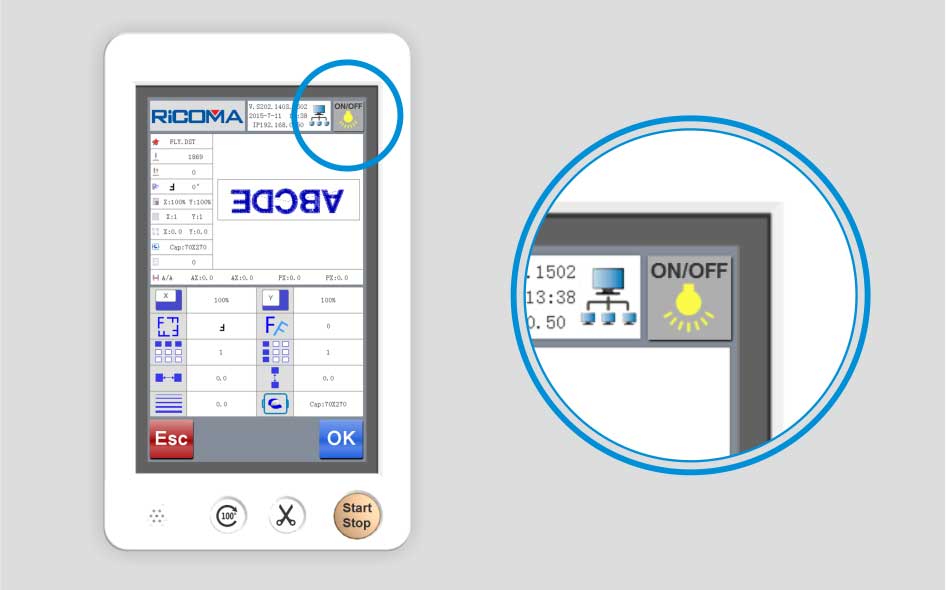

Network Capability Ready

Using advanced network technology, users can link together as many Ricoma machines as desired to an extremely flexible production system. Embroider the same design on all of your machines, or embroider different designs on individual machines simultaneously.

Network ready


Needles: 10

Heads: 1

Speed: Max. 1.000 SPM

Motor Main: Servo Motor

Motor X-Y: Stepping Motor

Operation box: Intuitive 7" True Color LCD Screen

Hook: Japanese Koban Hook

Memory Capacity: 20.000.000 Stiches or 200 Designs

Memory Media: USB Memory Stick

Safety Device: Error Code Message

Max. Embroidery Area: 31cm x 21cm

Cap Embroidery: 220° Cap Embroidery System

Power: Ac110 - 240V, 50-60 Hz self-adaptable

Net Weight: 45kg

Shipping Weight: 60kg

Size: 65cm x 58cm x 78cm

Package measurement: 71cm x 75cm 81cm

PDF Ricoma EM Series 18,5 MB

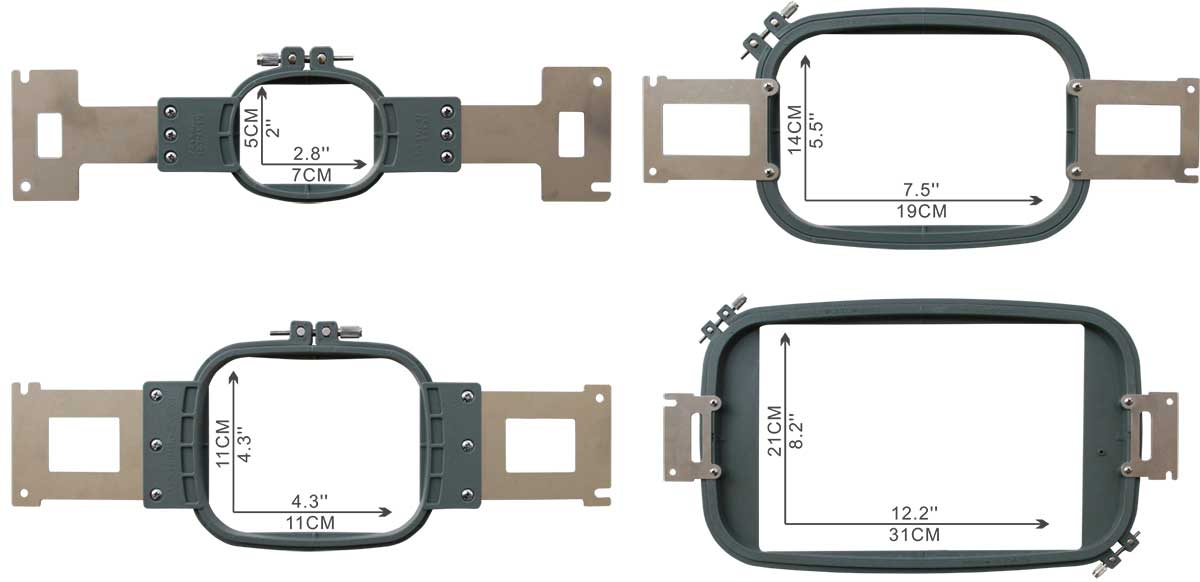

Included Accessories


  • 1 x Square Hoop 7 x 5 cm
  • 1 x Square Hoop 11 x 11 cm
  • 1 x Square Hoop 19 x 14 cm
  • 1 x Square Hoop 31 x 21 cm

Complete Cap Embroidery System

Cap Frame

2 x Cap Frame

Cap Hoop Station

1 x Cap Hoop Station

Cap Drive

1 x Cap Drive

Download the catalog of the entire Ricoma embroidery machine series as a PDF file. The catalog covers 35 pages and is 40,1 MB in size: PDF Ricoma Embroidery Machines

Visit our onlineshop www.stickereibedarf.de. There you will find extensive accessories for Ricoma embroidery machines as well as all materials needed for your embroidery business.

More informations round about embroidery machines on www.embroidery-machine.com.
