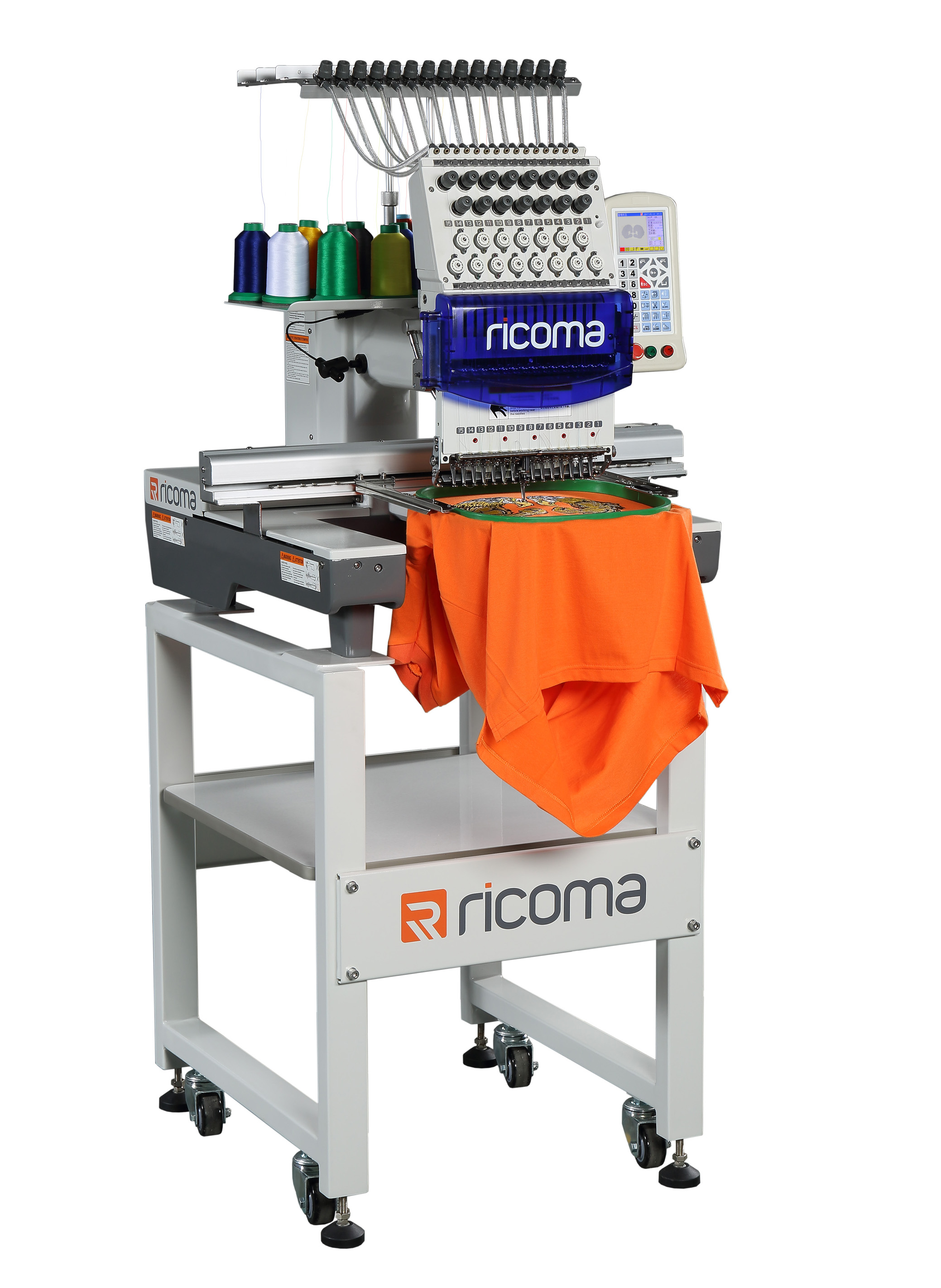

PT Series


Main Features

  • 12 or 15 needles, one head, suitable for flat bed embroidery, cap/hat embroidery, finished garments embroidery and more
  • Perfect for home and commercial embroidery
  • Max. Embroidery Area: 55cm x 35cm
    (Model RCM-1501PT-7S-EW4814 120cm x 35cm)
  • Automatic thread trimmer
  • Max. Speed 1200 SPM
  • 270° Cap Embroidery System
  • LCD display showing real time stitching
  • USB input or direct transmission from PC via LAN or optional via Wi-Fi
  • Networkable and Wi-Fi capable
  • Auto color change
  • Thread break detection
  • Pre-sew design trace capable
  • Automatic memory retention
  • Memory Capacity: 1.000.000 Stiches or 99 designs
  • Servo motor 150W - lowest power consumption in the industry!
  • Built-in universal power supply, 110V/60Hz and 220V/50Hz self adaptable worldwide
  • DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
  • Light weight with 90 kilograms, so it can be easily moved around
  • Heavy duty steel stand with wheels to ensure both stability and mobility
  • Onboard lettering
  • Environment friendly packaging
  • Included laser trace device
  • Emergency Stop
Embroidery Example
Embroidery Example
Embroidery Example

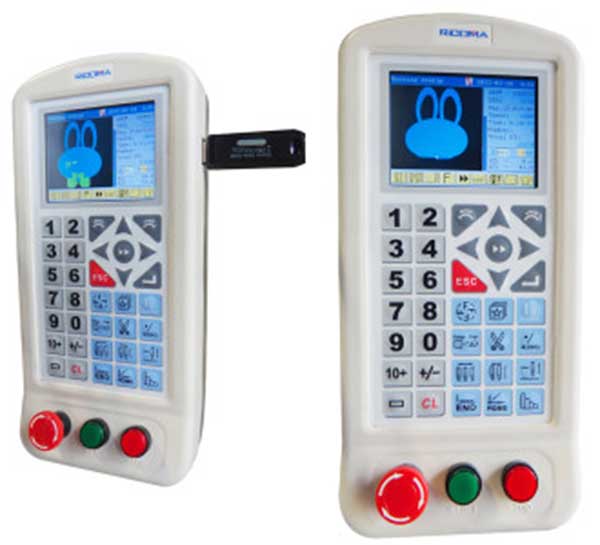

Color LCD Display Control Panel

  • Multi-languages available in English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more
  • Showing real time stitching
  • Machine reads multiple design formats, such as DST, DSB and more
  • Function buttons like Start, Stop, Emergency Stop
  • 3,5” high definition color LCD display
  • Adjustable Panelholder for better view
  • Recessed USB port to protect USB flash drive
  • Onboard Lettering for direct edditing of pre definied fonts
  • The main control panel is on the right side of the embroidery machine, and thus ideally reachable
  • External 100° button and trimming button, parameter settings, delete, ESC, Enter etc.
  • Frame move buttons, fast-slow, siteview up and down, help, USB-Input etc.

Network Capability Ready

Using advanced network technology, users can link together as many Ricoma machines as desired to an extremely flexible production system. Embroider the same design on all of your machines, or embroider different designs on individual machines simultaneously.

Network ready

Models

RCM-1201PT

Needles
12

Heads
1

Net Weight
90kg

Embroidery Area
55cm x 35cm

Size
74cm x 86cm x 82cm

RCM-1501PT

Needles
15

Heads
1

Net Weight
90kg

Embroidery Area
55cm x 35cm

Size
74cm x 86cm x 82cm

RCM-1501PT-7S-EW4814

Needles
15

Heads
1

Net Weight
90kg

Embroidery Area
120cm x 35cm

Size
75cm x 74cm x 85cm


This model contains the optional Embroidery Field Extension

PDF Ricoma PT Series 7,2 MB


Included Accessories


Embroidery Field Extension

Embroidery Field Extension

120cm x 50cm wide sewing field extension.

The model RCM-1501PT-7S-EW4814 contains this extension.
For other 15 needle machines this Embroiderx Field Extension is optional available.


Frames

  • 2 x Round Hoop 9 cm
  • 2 x Round Hoop 12 cm
  • 2 x Round Hoop 15 cm
  • 2 x Round Hoop 20 cm
  • 2 x Square Hoop 29 x 29 cm
  • 1 x Sash Frame 54 x 36 cm

Complete Cap Embroidery System

Cap Frame

2 x Cap Frame

Cap Hoop Station

1 x Cap Hoop Station

Cap Drive

1 x Cap Drive


Laser Pointer

Laser Pointer

Heavy duty steel stand with wheels

Heavy duty steel stand with wheels

Size: 70cm x 70cm x 78cm
Weight: 38kg
